Cargo van rear axle load imbalance from rear-concentrated cargo distribution shifts brake force beyond the OEM proportioning valve calibration point, produces axle wrap shudder under hard braking, and reverses the expected front-to-rear brake pad wear ratio. On San Antonio delivery routes through Downtown, I-410, and Hwy 90, June heat reduces rear brake fade margin precisely when delivery stop frequency is highest and rear axle load is at its peak.

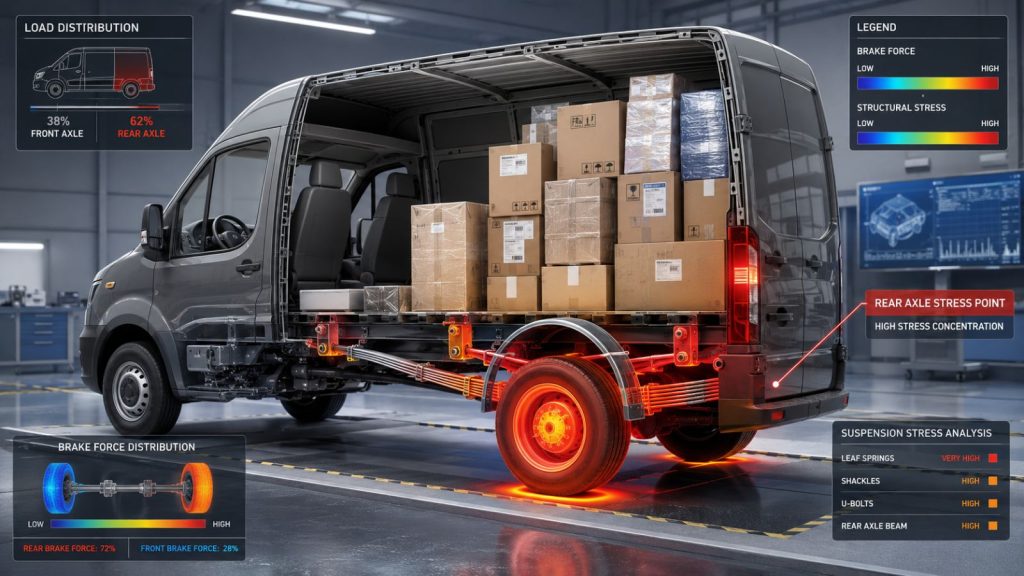

What Uneven Cargo Distribution Does to Rear Axle Load and Brake Balance
Cargo placement determines brake behavior. OEM brake proportioning systems on cargo van platforms are calibrated for evenly distributed cargo load across the full cargo floor area. Ford Transit rear GAWR ranges from 3,500 to 4,600 lbs depending on configuration. Ram ProMaster rear GAWR ranges from 3,417 to 4,409 lbs.
Cargo concentrated in the rear half of the cargo floor pushes rear axle load above the proportioning valve’s calibration point. At or above 80% of rated rear GAWR, the van distributes approximately 60 to 70% of total braking force to the rear axle during a panic stop from 45 mph. That is the opposite of the intended front-biased brake distribution. Rear brakes reach lockup threshold before front brakes reach maximum clamping force.
The brake pad wear ratio confirms the imbalance. On a properly loaded van, front pads wear faster than rear pads at a ratio of approximately 60:40. On a rear-heavy delivery van, that ratio reverses. Rear pad thickness at inspection measures 2 to 3 mm when front pads on the same vehicle still measure 5 to 7 mm. That reversal is not a brake system fault. It is a cargo distribution found visible on the lift without any additional diagnostic equipment.
Rear tire inflation compounds the problem when drivers use unloaded placard pressure under full cargo load. Ford Transit specifies 65 PSI rear tire pressure at maximum payload versus 51 PSI unloaded. Ram ProMaster specifies 60 PSI rear at maximum payload versus 50 PSI unloaded. Operating at unloaded pressure under full rear axle load reduces tire contact patch stiffness and increases lateral sidewall flex under cornering and braking loads.
Diagnostic Verdict. On cargo vans presenting with rear brake complaints and rear-heavy loading history, shop-floor brake inspection confirms rear pad thickness of 2 to 3 mm with front pad thickness of 5 to 7 mm on the same vehicle, and rear tire pressure at unloaded placard specification on vans carrying full payload loads on San Antonio delivery routes.
How San Antonio Delivery Route Conditions Amplify Rear Axle Load Shift Under Braking
San Antonio delivery routes are not forgiving on rear-heavy vans. The I-35 corridor through Downtown and Southtown runs delivery vans through high-frequency stop-and-go urban patterns with hard stops at traffic signals, loading zones, and pedestrian crossings. June ambient temperatures of 98°F to 104°F raise rear brake rotor surface temperatures on loaded delivery vans above safe operating thresholds during a full Downtown delivery cycle.
Rear rotors on vans with rear axle overload reach elevated temperatures faster than on balanced-load vans because the rear brakes are absorbing proportionally more work on every stop. Brake fade threshold at those temperatures reduces rear brake clamping force. The reduction shifts stopping demand to the front axle and destabilizes the vehicle under hard braking conditions in the Downtown delivery zone.
The I-410 Northwest Side commercial loop between Hwy 151 and Bandera Road adds a high-speed deceleration component. Delivery vans running the I-410 commercial corridor accelerate to 55 to 65 mph between exits and brake hard for exit ramps in rapid sequence. A rear-heavy loaded van decelerating from 60 mph on an I-410 exit ramp places maximum torque shift load on the rear axle at the exact moment when vehicle stability is most critical.
In cargo vans we service from San Antonio delivery fleets operating the I-35 Downtown corridor, rear brake pad thickness at inspection consistently measures 2 to 3 mm while front pads still measure 5 to 7 mm on the same vehicle. That reversed wear ratio is the first diagnostic indicator of rear axle load imbalance. It appears on vans whose drivers load cargo to the rear of the cargo floor by habit rather than by weight distribution protocol.
Diagnostic Verdict. On Downtown corridor delivery vans with full daily route mileage, rear rotor inspection confirms heat discoloration patterns consistent with repeated elevated-temperature braking cycles, with rear pad wear advanced beyond front pad wear on the same vehicle at the same inspection mileage interval.
The Stability Loss Progression From Load Imbalance to Handling Failure
Rear axle instability builds in stages. The first stage is a brake shudder felt through the floor during hard stops on I-410 exit ramps or Hwy 90 signal stops near Lackland AFB. At this stage, the shudder is load-dependent. It is present under full delivery load and absent or mild when the van is empty. The driver may not connect it to cargo placement.
The shudder source is axle wrap. Under hard braking, the rear axle housing rotates forward on the leaf springs against the direction of wheel rotation. That forward rotation is opposed by the leaf spring eye bushings. Worn or fatigued bushings cannot resist the torque moment, and the housing moves through several degrees of rotation before the spring arrests it. The snap-back produces the shudder felt through the floor.
The second stage extends the shudder to moderate stops. By the time axle wrap shudder is present on moderate-speed stops in the Downtown delivery zone, rear brake pad thickness is typically at 2 mm or below. Leaf spring eye bushings show measurable deterioration from repeated axle wrap cycles under full delivery load.
The pattern we see most often on San Antonio delivery van brake complaints is exactly this two-stage progression. The driver first notices the shudder on I-410 exit ramp hard stops. Weeks later it appears on moderate stops in the Downtown zone. At inspection, the reversed brake pad wear ratio and deteriorated leaf spring bushings confirm that the shudder source was rear axle load imbalance from day one of the delivery route, not rotor condition.
The third stage is lateral instability under braking turns. A rear-heavy van with understretched rear tire sidewalls at unloaded inflation pressure and worn leaf spring bushings develops rear-end lateral movement under combined braking and turning loads. The driver describes the van as feeling loose or wanting to swing out under hard braking. That behavior on San Antonio delivery routes where signal stops require braking into turns is a safety concern that requires immediate axle load and brake system diagnosis.
Diagnostic Verdict. On vans presenting at stage two of this progression, leaf spring eye bushing inspection confirms measurable radial play above acceptable tolerance at the spring eye, with rear brake pad thickness at 2 mm or below and front pad thickness at 5 mm or above on the same vehicle confirming load-imbalance-driven rear brake overwork as the primary wear source.
What the Diagnostic Process Confirms Before Axle or Brake System Service
Warped rotors are the most common misdiagnosis for delivery van brake shudder. Rotor warp produces a brake pedal pulsation that is consistent at any load level and present on every stop regardless of cargo weight. Axle wrap shudder is load-dependent. The distinction matters because rotor replacement does not resolve axle wrap shudder, and the shudder returns on the first fully loaded delivery run after the service.
The load-state comparison test separates the two sources before any parts are ordered. Road testing the van fully loaded versus empty on the same I-410 exit ramp deceleration event at the same speed produces a clear diagnostic result. Shudder present fully loaded and absent empty confirms axle wrap from rear load imbalance. Shudder present at both load states confirms the rotor or brake system as the primary source. That single test routes the repair correctly and prevents rotor replacement on a van whose actual problem is cargo distribution and leaf spring bushing wear.
Many fleet managers have approved rotor resurfacing on delivery vans that returned with the same shudder on the next fully loaded route. The rotor service addressed a symptom that the road test would have ruled out. The load-state test takes one road test cycle and costs nothing before parts are ordered.
After the load-state test confirms axle wrap as the source, the diagnostic sequence continues with leaf spring eye bushing inspection, rear suspension ride height measurement against OEM specification, and rear tire inflation verification against the load-specific placard. Fleet operators who need a San Antonio mechanic experienced with cargo van axle and brake diagnosis benefit from that complete sequence before any brake or suspension component is replaced.
Diagnostic Verdict. On vans where the load-state comparison test confirms shudder under full delivery load and absence under empty condition, leaf spring eye bushing inspection finds measurable deterioration at the spring eye and rear axle U-bolt mounting points in the majority of confirmed axle wrap cases, with rotor lateral runout measuring within OEM tolerance on the same vehicle confirming rotor warp was not the shudder source.
Fleet operators and owner-operators noticing reversed brake pad wear, exit ramp shudder, or rear-end instability on San Antonio delivery routes can schedule a cargo van axle and brake diagnostic with Ruben’s Auto Repair, 7210 Polar Bear, San Antonio, TX 78238, at (210) 647-1148, before axle wrap and brake fade advance to a handling failure on a fully loaded route.
Frequently Asked Questions
Why do my cargo van rear brakes wear out faster than the front brakes in San Antonio?
Yes, rear-concentrated cargo loading above 80% of rear GAWR shifts brake force distribution beyond the OEM proportioning valve calibration, causing rear pads to measure 2 to 3 mm when front pads still measure 5 to 7 mm.
What causes a cargo van to shudder under hard braking on San Antonio delivery routes?
Yes, axle wrap from rear-heavy cargo loading and worn leaf spring eye bushings produces floor shudder during hard stops on I-410 exit ramps and I-35 Downtown signal stops under full delivery load.
How do I know if my van shudder is warped rotors or rear axle load imbalance?
Yes, axle wrap shudder is present under full delivery load and absent when the van is empty, while rotor warp produces consistent pedal pulsation at any load level on the same stop.
What tire pressure should a Ford Transit or Ram ProMaster carry under full cargo load?
Yes, Ford Transit specifies 65 PSI rear at maximum payload and Ram ProMaster specifies 60 PSI rear at maximum payload, versus lower unloaded placard pressures that reduce sidewall stiffness under full rear axle load.
Does June heat in San Antonio make delivery van brake fade worse under rear axle overload?
Yes, June ambient temperatures of 98°F to 104°F raise rear brake rotor temperatures above fade threshold faster on rear-heavy vans than on balanced-load vans during high-frequency Downtown delivery stop cycles.
Can rear cargo distribution cause a delivery van to feel unstable under braking turns?
Yes, rear-heavy loading combined with unloaded tire inflation pressure increases rear sidewall lateral flex, producing rear-end instability under combined braking and turning loads on San Antonio delivery route signal stops.
